Access the full technical dossier for the BP360C PRO series, featuring IP66 protection and high-burst overload architecture.
WEGREEN® PROFESSIONAL
BP360C PRO | 5kWh Standby Power: Seamless Business Continuity
$5,594.00
The BP360C PRO is an industrial-grade standby energy solution engineered for clinics, laboratories, and high-stakes business environments. Featuring a high-rate 5120Wh LiFePO4 core and an IP66-rated chassis, it delivers 3600W of sustained pure sine wave power with zero-interruption UPS switching to safeguard mission-critical equipment against grid instability.
3.6kWRated Output
5120WhEnergy Reserve
<20msUPS Switching
IP66Protection
Mission-Critical UPS Continuity: <20ms Automatic Switching
Designed for zero-tolerance environments, the BP360C PRO functions as a high-capacity standby power supply. Integrated UPS logic monitors grid health in real-time, executing a seamless transition to battery power in less than 20 milliseconds during a failure. This ensures that sensitive medical diagnostics, laboratory centrifuges, and critical servers remain operational without rebooting or data loss.
500% Peak Surge: Engineering for Inductive Load Stability
Unlike standard backup systems, the BP360C PRO is built for industrial-scale high-inrush currents. Utilizing a multi-stage overload protocol, it supports an 18kW (500%) surge for 200ms and a 250% load for 15 seconds. This allows for the simultaneous startup of heavy-duty compressors, laboratory cooling systems, and high-torque motors without system tripping.
IP66 Weather-Sealed Chassis for Harsh Environments
While primarily a standby unit, the BP360C PRO inherits WEGREEN's extreme-duty DNA. The fully sealed IP66 enclosure provides total protection against heavy rain, fine dust, and high humidity. This makes it the ideal choice for semi-outdoor deployment, field hospitals, or disaster relief sites where environmental conditions are as unpredictable as the power grid.
IP66

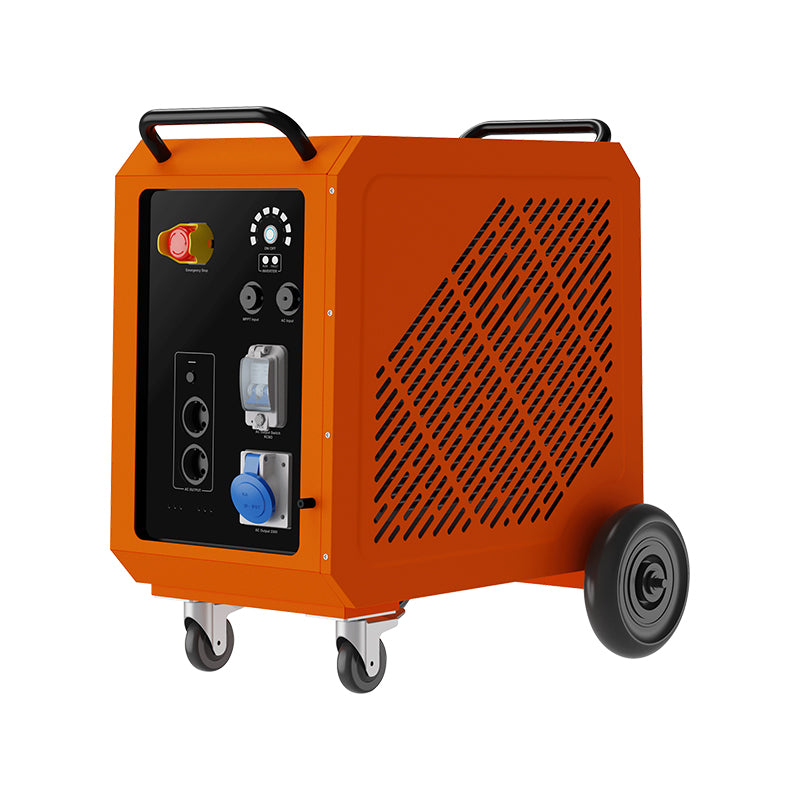

Active Safety Intervention: Dedicated Emergency Stop System
Professional environments require absolute control. The BP360C PRO features a mechanical Emergency Stop Button (E-Stop) for immediate physical disconnection of output during critical events. Combined with an active BMS that detects short circuits in under 200μs, the system provides a dual-layer safety architecture—hardware and software—to protect both the operators and the downstream equipment.
Technical Specifications
| Battery Type | LiFePO4 |
| AC Waveform | Pure Sine Wave |
| Capacity | 5120Wh |
| 150% overload | Operation for 600s possible |
| 200% overload | Operation for 100s possible |
| 250% overload | Operation for 15s possible |
| Peak power | 18000W |
| AC Output | 100V/120V/230V/240V |
| Max.PV Input Power | 600W 12V~60V 10A |
| Max.AC Input Power | 860W |
| Charging Time | ~6Hrs(AC) ~8.5Hrs(PV) |
| Size | 531*672*697mm |
| Weight | About 100KG |
| Protection rating | IP66 |
| Noise emissions | <35 dB(A） |
| Charging Temperature Range | 0℃~45℃ |
| Discharging Temperature Range | -20℃~45℃ |
FAQ
Q: Can the BP360C PRO be used as a primary whole-house battery?
A: The BP360C PRO is a specialized standby power system designed for localized circuit protection and business continuity. While its 5kWh capacity and 3.6kW output can power multiple household appliances, its engineering is optimized for commercial, medical, and industrial backup where ruggedness and UPS speed are critical.
Q: How does the unit handle high-temperature industrial environments?
A: The system is operational from -20°C to 45°C. The internal BMS actively monitors cell-level temperatures, while the industrial chassis acts as a thermal shield. If internal temperatures exceed 90°C (194°F), the system triggers a thermal lockout to preserve cell integrity.
Q: Is the UPS switching fast enough for a high-end server?
A: Yes. With an automatic switching speed of <20ms, the BP360C PRO meets the standard requirements for most professional servers, workstations, and laboratory equipment to ensure a flicker-free transition.
Q: What is the advantage of LiFePO4 over NCM for standby power?
A: LiFePO4 (Lithium Iron Phosphate) offers superior thermal stability and a much longer cycle life (3500+ cycles). For a standby power supply, this means the unit can remain in UPS mode for years with minimal battery degradation, providing a better long-term ROI for businesses.
Q: Is the unit waterproof for disaster relief?
A: Yes. The BP360C PRO is IP66-rated, providing ingress protection against high-pressure water jets and heavy dust. It is purpose-built to provide reliable energy in outdoor disaster zones or flooded clinical environments.
