Access the full technical dossier for the BP360H series, featuring IP54 protection and high-burst overload architecture.
WEGREEN® PROFESSIONAL
BP360H | 18kW Surge Jobsite Power: Engineered for 15A Tools
$4,750.00
The BP360H is a heavy-duty energy solution purpose-built for the demands of professional construction and masonry. Encased in a high-visibility safety orange chassis, it delivers a massive 18,000W peak surge to handle the violent inrush currents of 15A industrial tools. It provides a zero-emission, silent alternative to gas generators on active jobsites.
3600WRated Output
18,000WPeak Surge
15ATool Optimized
IP54Ruggedized

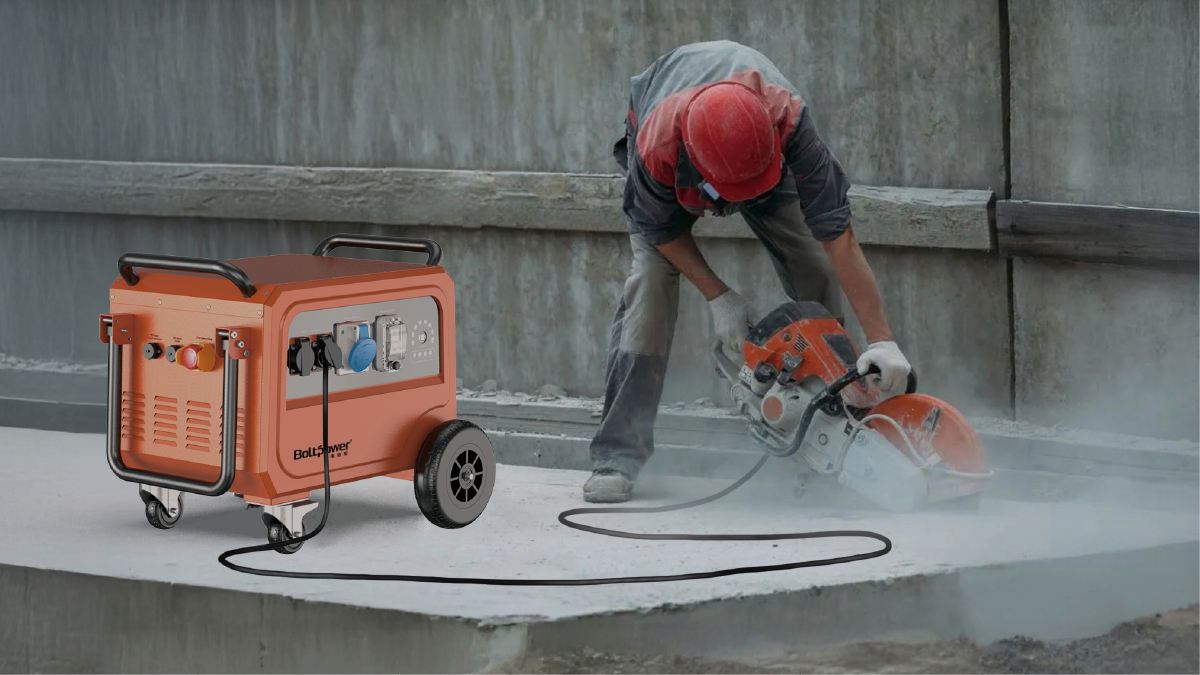

Sustained Torque: Optimized Power Curve for 15A Motors
Most portable stations trip instantly under the resistance of industrial motors. The BP360H is engineered with a multi-stage overload protocol: 250% load (9000W) for 15 seconds, 200% for 100 seconds, and 150% for 600 seconds. This specific engineering allows for the flicker-free startup and stabilization of high-torque circular saws, grinders, and demolition hammers.

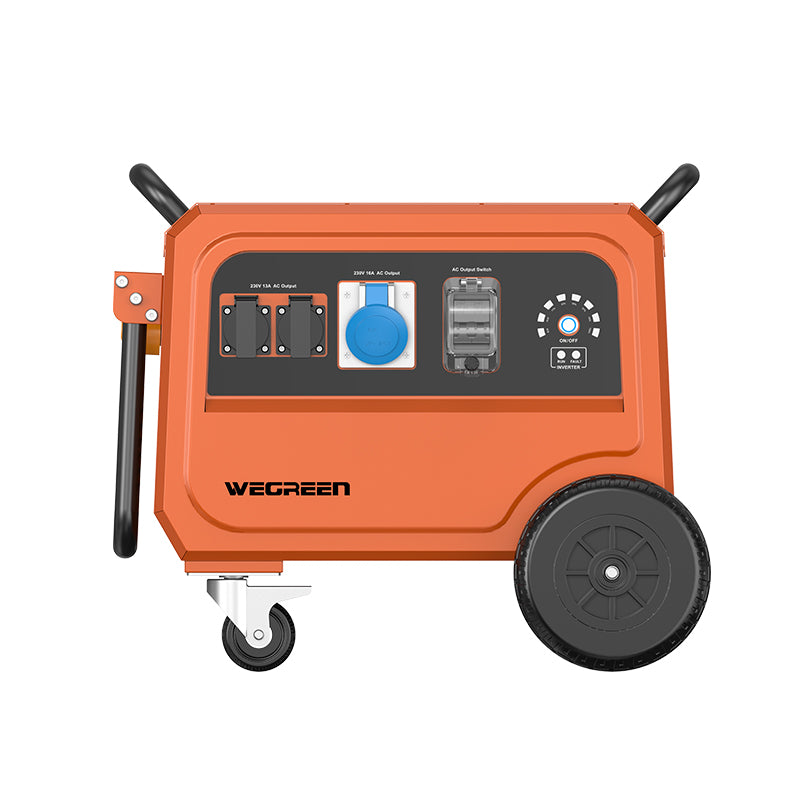

Integrated 32A ELB Protection & Emergency Stop System
Electrical safety is critical in high-stakes environments. The BP360H integrates an industrial 32A Earth Leakage Breaker (ELB) to protect operators from ground faults. A mechanical Emergency Stop Button (E-Stop) provides an immediate physical kill-switch for all AC outputs, ensuring safe operation in unpredictable jobsite conditions.

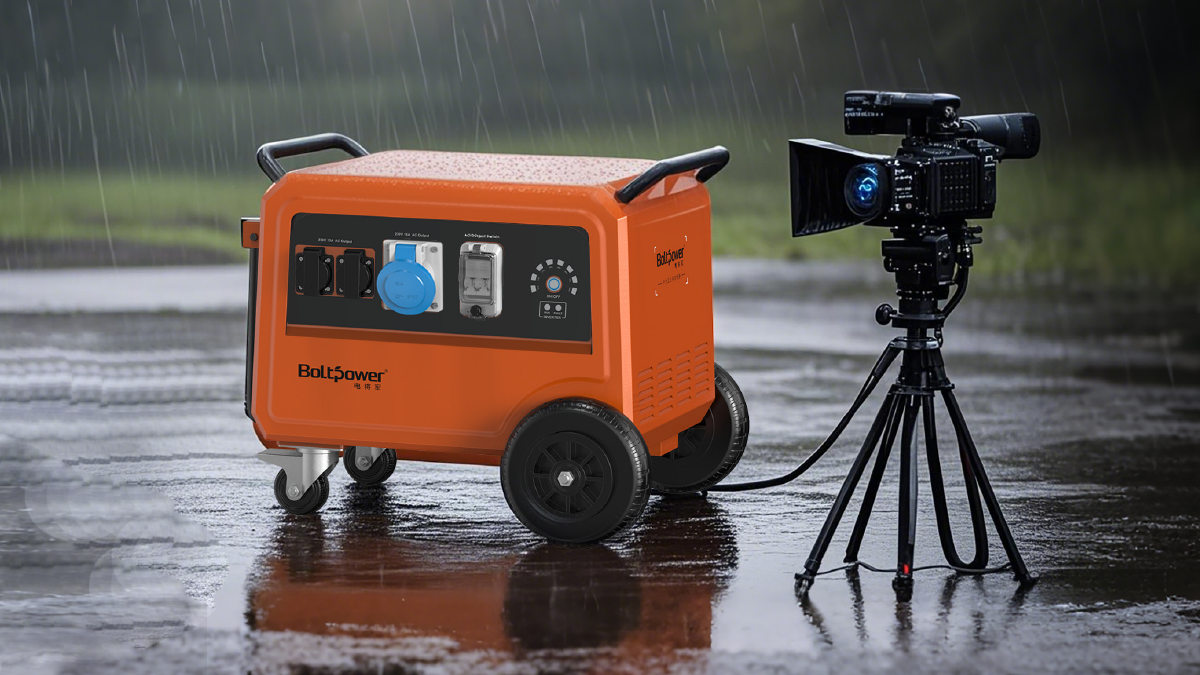

Region-Specific Interfacing & IP54 Weather-Sealed Chassis
Designed for international deployment, the BP360H is available in dedicated configurations for 100V, 120V, 230V, and 240V standards. Every port is weather-sealed to IP54 standards, protecting internal LiFePO4 cells from dust ingress and water splashes. The high-visibility orange chassis ensures the unit is easily identified in cluttered site environments.
IP54
5120Wh (5.1kWh) Capacity for Full-Shift Performance

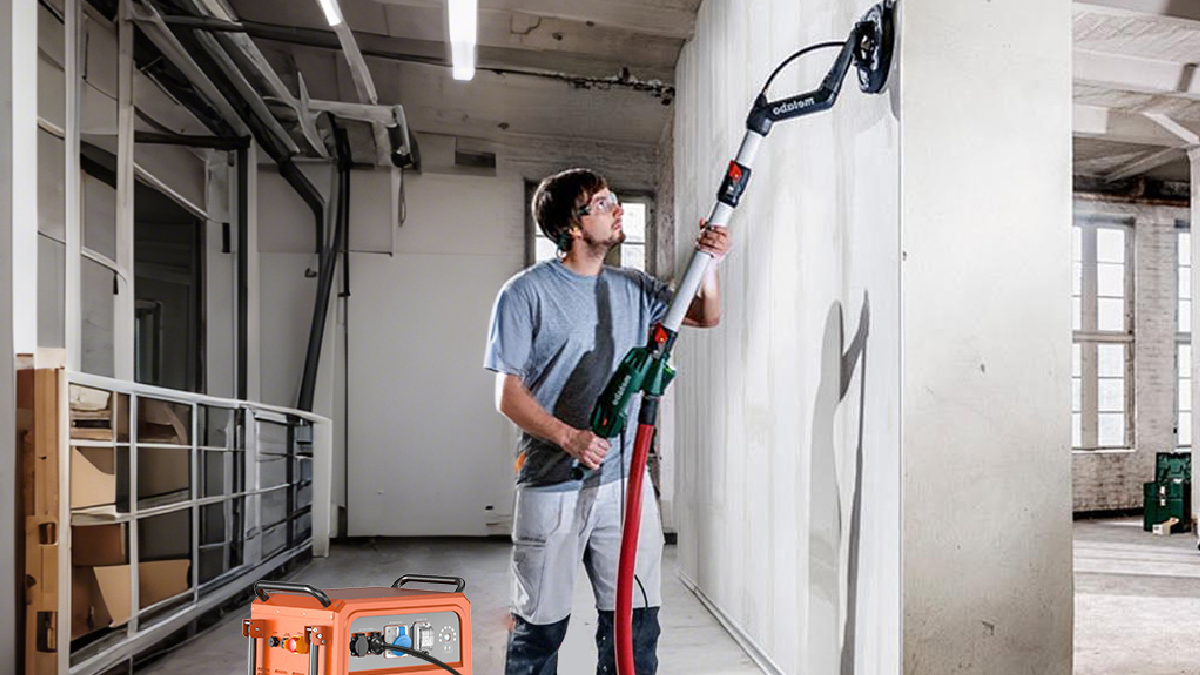

Powered by high-rate Lithium Iron Phosphate (LiFePO4) chemistry, the BP360H delivers 3500+ cycles of sustained performance. The 5.1kWh core provides the endurance needed for extended off-grid work, while operating at an ultra-quiet <45dB, making it ideal for indoor renovations and noise-sensitive neighborhoods.
Technical Specifications
| Battery Type | LiFePO4 |
| AC Waveform | Pure Sine Wave |
| Capacity | 5120Wh |
| Rated Output Power | 3600W |
| 150% overload | Operation for 600s possible |
| 200% overload | Operation for 100s possible |
| 250% overload | Operation for 15s possible |
| Peak power | 18000W |
| AC Output | 100V/120V/230V/240V |
| Max.PV Input Power | 600W 12V~60V 10A |
| Max.AC Input Power | 860W |
| Charging Time | ~6Hrs(AC) ~8.5Hrs(PV) |
| Size | 604.8*544*513.4mm |
| Weight | About 73KG |
| Protection rating | IP54 |
| Noise emissions | <45 dB(A） |
| Charging Temperature Range | 0℃~45℃ |
| Discharging Temperature Range | -20℃~45℃ |
FAQ
Q: Will the BP360H trip when starting a 15A circular saw?
A: No. The BP360H is specifically "15A Tool Optimized." It handles an 18kW surge and sustains a 250% overload for 15 seconds, which is more than enough time for high-torque motors to start and stabilize.
Q: What is the purpose of the 32A Leakage Switch?
A: On a jobsite, electrical safety is critical. The integrated 32A Leakage Switch (ELB) provides an essential layer of protection against ground faults and short circuits, instantly cutting power to protect workers and equipment in hazardous conditions.
Q: Is the unit waterproof enough for rain?
A: The BP360H is IP54-rated, meaning it is protected against dust ingress and water splashes from all directions. While it should not be submerged, it is designed to withstand the typical moisture and rain encountered on outdoor construction sites.
Q: Does it have a "Zero-Emission" benefit over gas generators?
A: Absolutely. As a battery-powered generator, it produces zero exhaust fumes and operates at a much lower decibel level (<45dB), allowing for use in indoor renovation projects, hospitals, or noise-sensitive neighborhoods where gas engines are prohibited.
