Access the full technical dossier for the BP360G series, featuring IP66 protection and high-burst overload architecture.
WEGREEN® PROFESSIONAL

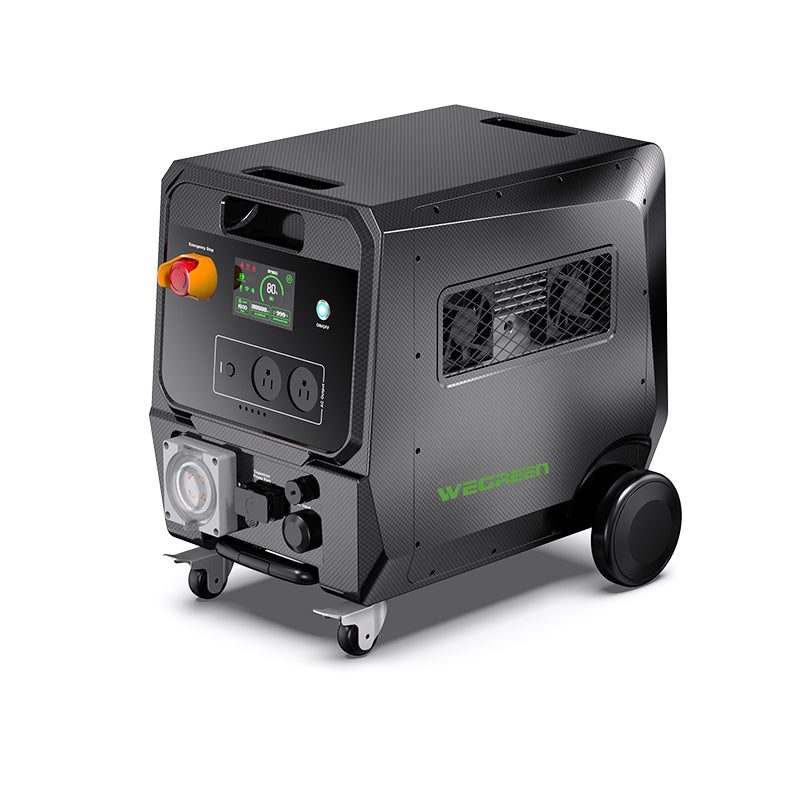

BP360G | Carbon Fiber Van Power System: 18kW Mobile Energy Solution
$6,727.00
Advanced carbon-fiber reinforced power system engineered for professional fleet vans and mobile workshops. The BP360G resolves the critical challenge of high energy density (up to 9kWh) vs. weight, ensuring single-person portability without compromising industrial output.
3.6kWRated Output
18kWPeak Surge
CarbonFiber Chassis
9kWhMax Capacity

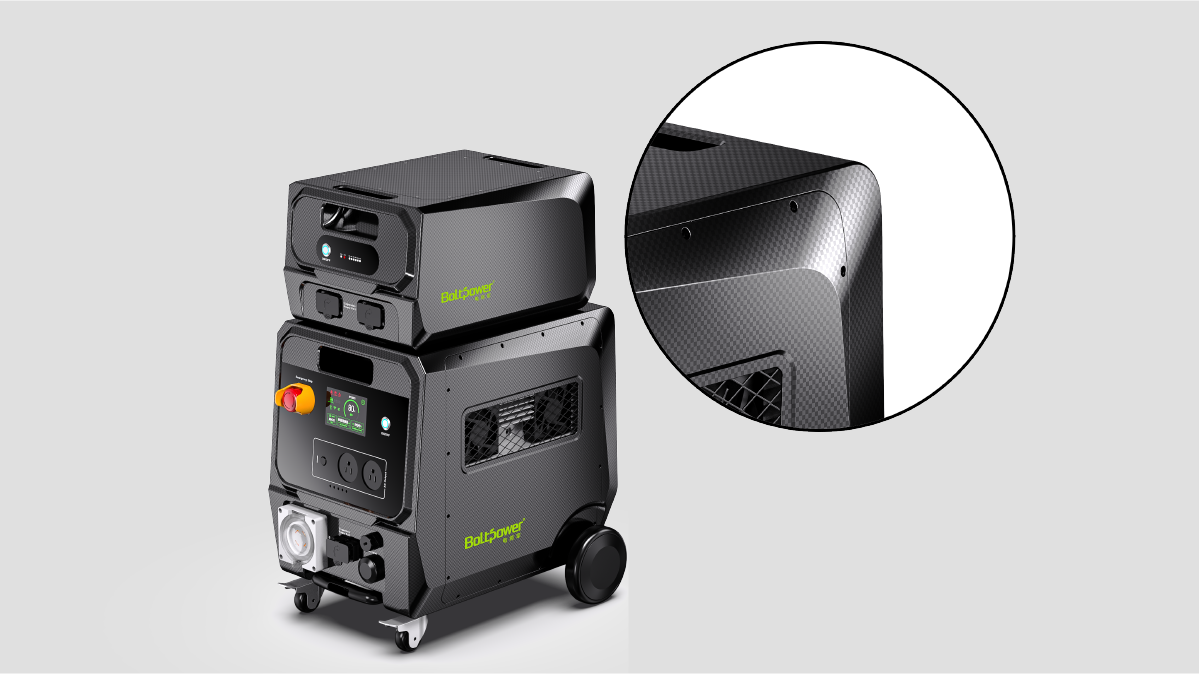

Ultra-Light Strength with Carbon Fiber Chassis
The BP360G utilizes a High-Modulus Carbon Fiber Reinforced Polymer (CFRP) enclosure. This structural choice provides extreme rigidity and impact resistance, shielding internal cells from the constant high-frequency vibrations and mechanical shocks typical of professional transit. The lightweight properties of CFRP ensure the system remains mobile for field deployment without compromising its industrial-grade protection.

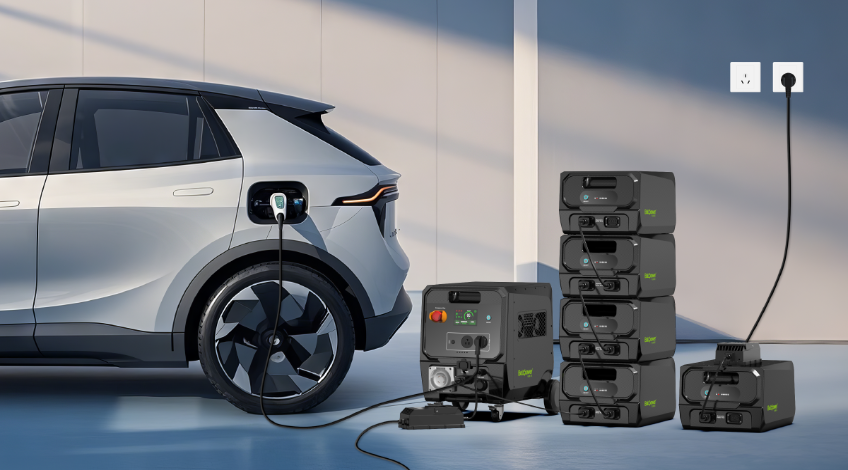

Scalable Energy Architecture: Up to 9kWh
Adapt your energy storage to your mission. The BP360G is a modular hub that supports the addition of up to four 2.24kWh expansion battery packs. This systematic approach allows you to scale from a compact unit to a massive 9kWh power plant, providing enough energy for multi-day off-grid operations or high-demand mobile fleet requirements.
Smart Ecosystem: App Monitoring & Anti-Theft Security
Take total control via the WEGREEN Intelligent App. Connected via Bluetooth and GPS, users can monitor real-time system health, track energy flow, and receive predictive maintenance alerts. For fleet security, the integrated anti-theft system allows for remote location tracking and system lockout, ensuring your investment is protected in any environment.
APP-Control

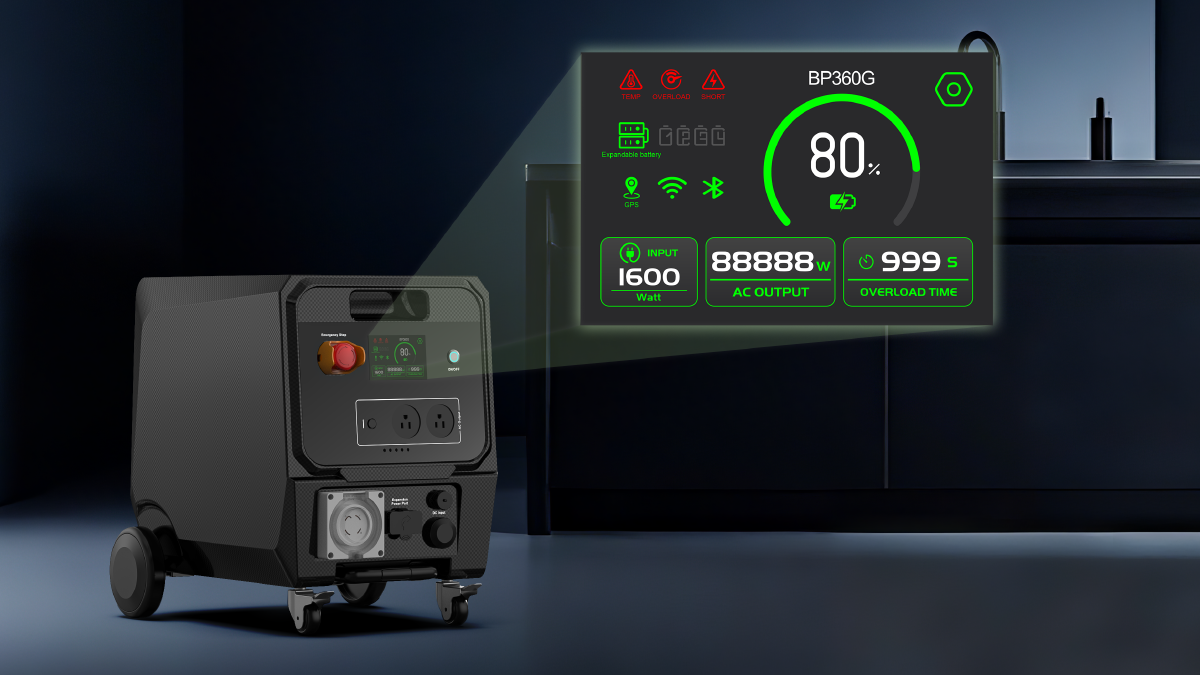

4.3" Visual IPS Touchscreen Interface
The front-facing 4.3-inch high-definition IPS touchscreen provides a mission-critical dashboard for your power system. View real-time output metrics, internal temperature, and battery health at a glance. The intuitive touch interface allows for immediate control over AC/DC outputs and instant response to overload alarms through a clear, visual notification system.
Technical Specifications
| Battery Type | NCM |
| AC Waveform | Pure Sine Wave |
| Capacity | 2240Wh (up to 9kWh with expansions) |
| Rated Output Power | 3600W |
| 150% overload | Operation for 600s possible |
| 200% overload | Operation for 100s possible |
| 250% overload | Operation for 15s possible |
| Peak power | 18000W |
| AC Output | 100V/120V/230V/240V |
| Max.PV Input Power | / |
| Max.AC Input Power | 860W |
| Charging Time | ~3Hrs |
| Size | 558.5*436.8*520mm |
| Weight | About 27KG |
| Protection rating | IP66 |
| Noise emissions | <35 dB(A） |
| Charging Temperature Range | 0℃~45℃ |
| Discharging Temperature Range | -20℃~45℃ |
FAQ
Q: Can this power station run a 15A high-torque circular saw?
A: Yes. Unlike consumer-grade units, the BP360G features an 18kW peak surge (500%) for 200ms and can sustain a 250% overload (9kW) for 15 seconds. This specific power curve is engineered to handle the high-inrush startup current characteristic of 15A industrial motors and circular saws.
Q: Is it safe to leave a lithium power station in a hot van?
A: The BP360G is designed for professional transit. It operates safely in environments up to 45°C (113°F) and features an active cooling system and BMS that monitors cell temperatures in real-time. The carbon fiber chassis also provides superior thermal shielding compared to plastic enclosures.
Q: How does the anti-theft GPS work if the power is off?
A: The GPS and communication modules draw power directly from the system’s internal Logic/BMS architecture. Even when the main AC outputs are disabled, the system maintains a ultra-low power state (≤50μA) to keep GPS tracking and App connectivity active for remote security monitoring.
Q: Can I expand the battery capacity while the tools are running?
A: To ensure system stability and voltage balancing through the 120A interface, we recommend connecting the expansion battery packs when the main unit is powered off. Once connected, the system will automatically sync and display the total combined capacity (up to 9kWh).
Q: Is the BP360G waterproof for outdoor jobsites?
A: The BP360G is IP66-rated, meaning it is fully sealed against heavy rain and dust ingress. Combined with its impact-resistant carbon fiber body, it is built for the harshest professional field conditions.
